Scope Function Application Parameters video

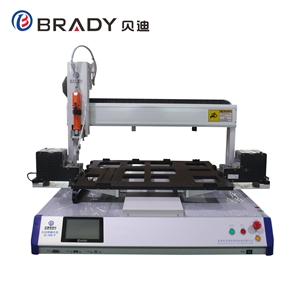

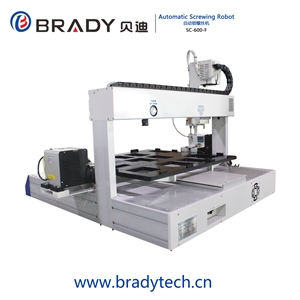

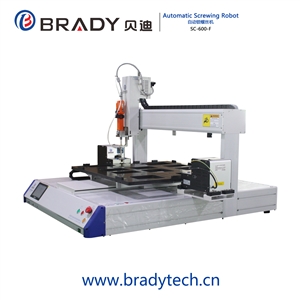

This robot uses the smart screwdriver and PLC control system to detect for scew loosed, screw missing, screw unstable etc.. and allocation double screw feeder to be locked two size screws at the same product. Apply to all kinds of electronic products screw locking. Such as mobile, Smartphone, Wireless telephone, Calculator, Navigation screen, Sounds box, Camera, Notebook,table computer,Learning machine,Intelligent appliance,, Toys etc.



1) With Auto-intelligent detection for screw loosed,screw missing,screw unstable,Etc.

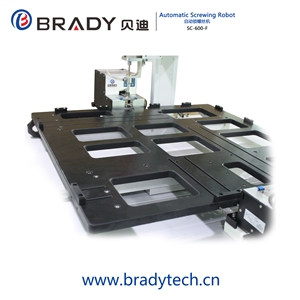

2) Excellent flexibility, allocation all-powerful fixture suit for multi styles screw      M1.0~M4.0.
3) Super large working platform, locking range: 600*600mm
4) Equipment appearance beautiful.Easy move into production line, and allocation front put product then take out from rear function. Unmanned operation, and bigger operation platform. With double feeder to increase the working efficiency, and also it can lock two kinds of screws.

Apply to all kinds of electronic products screw locking. Such as mobile, Smartphone, Wireless telephone, Calculator, Navigation screen, Sounds box, Camera, Notebook,table computer,Learning machine,Intelligent appliance,, Toys etc.

 Specifications:
      Outline size:860*1080*710mm (L*W*H )
      Working range : 650*680*100mm(X*Y*Z )
      Weight : 65KG
      Drive model : 3 axis precision step driving
      Position  accuracy : ±0.02mm
      Control system : PLC+ Touch screen control system
      Program memory size : 100 groups, each group have 100 pot
      Program model : Could be edit
      Feeding mode : Suck style
      Lokced efficiency : Less than 1.5S/pcs
      Feeder quantity : 1 to 2 pcs
      COM : USB
      Movement guide rail : Import slid rail
      Power supply : 220VAC, 50HZ
      Air pressure : 0.4 Mpa
